The home pump reference

Home pumps, sized for your basement.

Sump, backup, sewage, utility and well pumps compared on the makers' own numbers: horsepower, flow, how high each one can push water, and the switch that runs it. Set your lift and pipe run to see which pumps have head to spare.

281
products researched
86
brands covered
8
categories compared
Basement lift checkSump pumps
10 ft 25 ft run TDH 13.6 ft 1-1/2 in pipe · 40 GPM

14 pumps in our catalog state a maximum head

  1. Red Lion RL-SP33PED Pedestal Sump PumpMax head 15.0 ft (maker) · max 3,300 GPH · 1/3 HP
  2. Little Giant WRSC-6 Compact Sump Pump Basin SystemMax head 18.0 ft (maker) · max 2,760 GPH · 1/3 HP

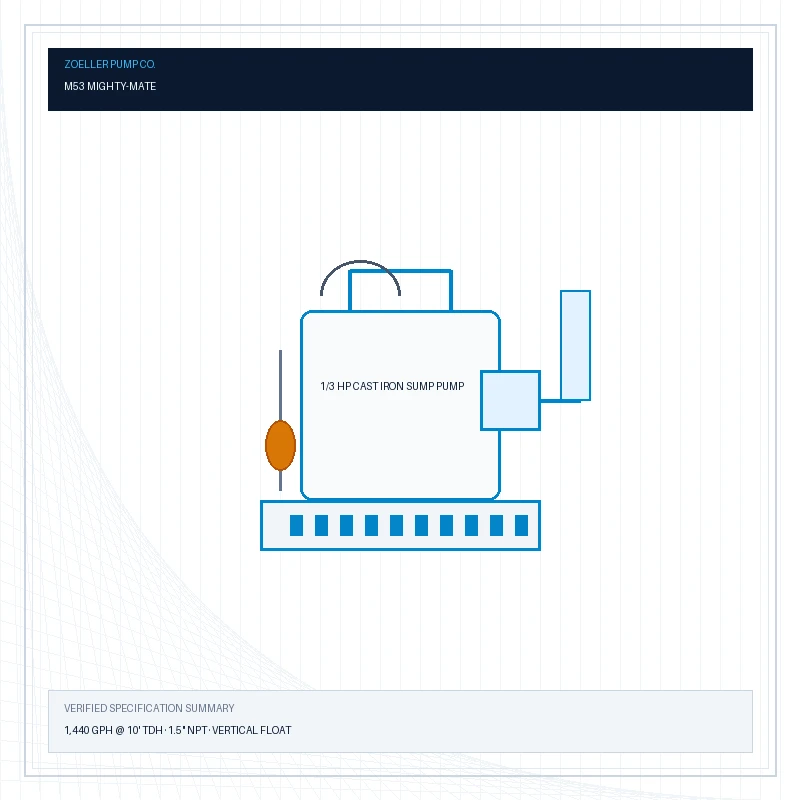

  3. Zoeller M53 Mighty-Mate Sump PumpMax head 19.25 ft (maker) · 1/3 HP
  4. Zoeller M57 Mighty-Mate Sump PumpMax head 19.25 ft (maker) · max 2,580 GPH
  5. Liberty Pumps 404 Short Profile Drain PumpMax head 20.0 ft (maker) · max 2,340 GPH · 1/3 HP
  6. Superior Pump 92333 Pedestal Sump PumpMax head 20.0 ft (maker) · max 3,000 GPH · 1/3 HP
  7. Wayne CDU790 Sump PumpMax head 20.0 ft (maker) · max 3,780 GPH · 1/3 HP
  8. Wayne CDU800 Sump PumpMax head 20.0 ft (maker) · max 5,100 GPH · 1/2 HP
  9. Liberty Pumps 237 Sump PumpMax head 21.0 ft (maker) · max 2,640 GPH · 1/3 HP

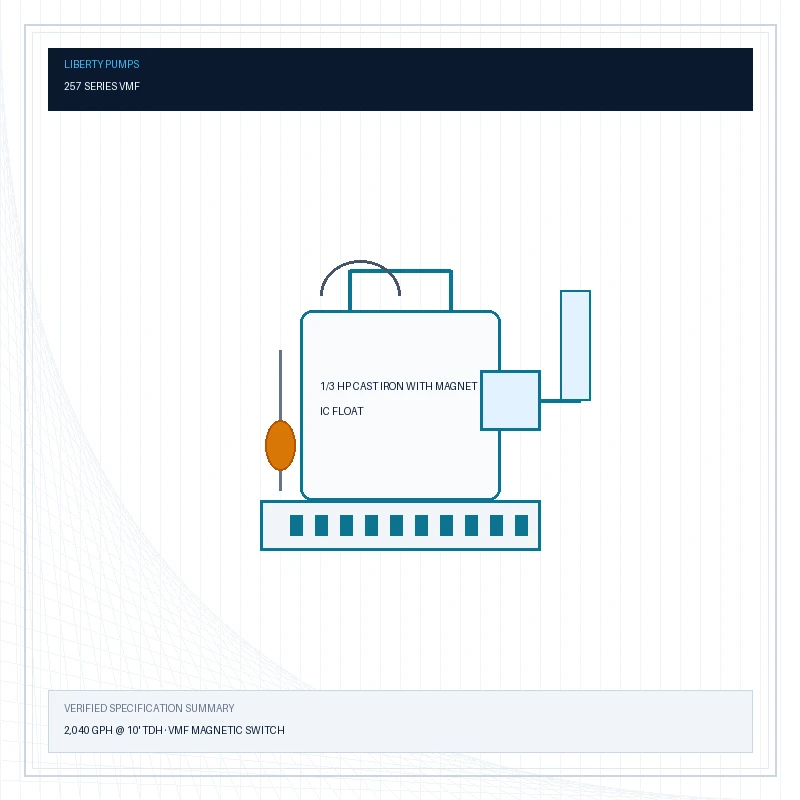

  10. Liberty Pumps 257 Sump PumpMax head 21.0 ft (maker) · max 3,000 GPH · 1/3 HP
  11. Zoeller M98 Flow-Mate Sump PumpMax head 23.0 ft (maker) · max 4,320 GPH · 1/2 HP
  12. Red Lion RL-SC50V Sump PumpMax head 28.0 ft (maker) · 1/2 HP
  13. RainBro PSU051V Sump PumpMax head 31.0 ft (maker) · max 3,360 GPH · 1/2 HP
  14. Liberty Pumps 287 Sump PumpMax head 37.0 ft (maker) · max 4,500 GPH · 1/2 HP
Size a pump with your fittings and pipe

How Pumpendium works

A reference, not a review blog

Makers' own figures

Every specification comes from the maker's or seller's own published information. If a maker doesn't state something, we say so instead of guessing.

Sized to your basement

Horsepower alone doesn't size a pump. Our calculators turn your lift, pipe run and inflow into the head and flow you actually need.

Real models only

One page per real model, matched to its exact product listing. How we research.
